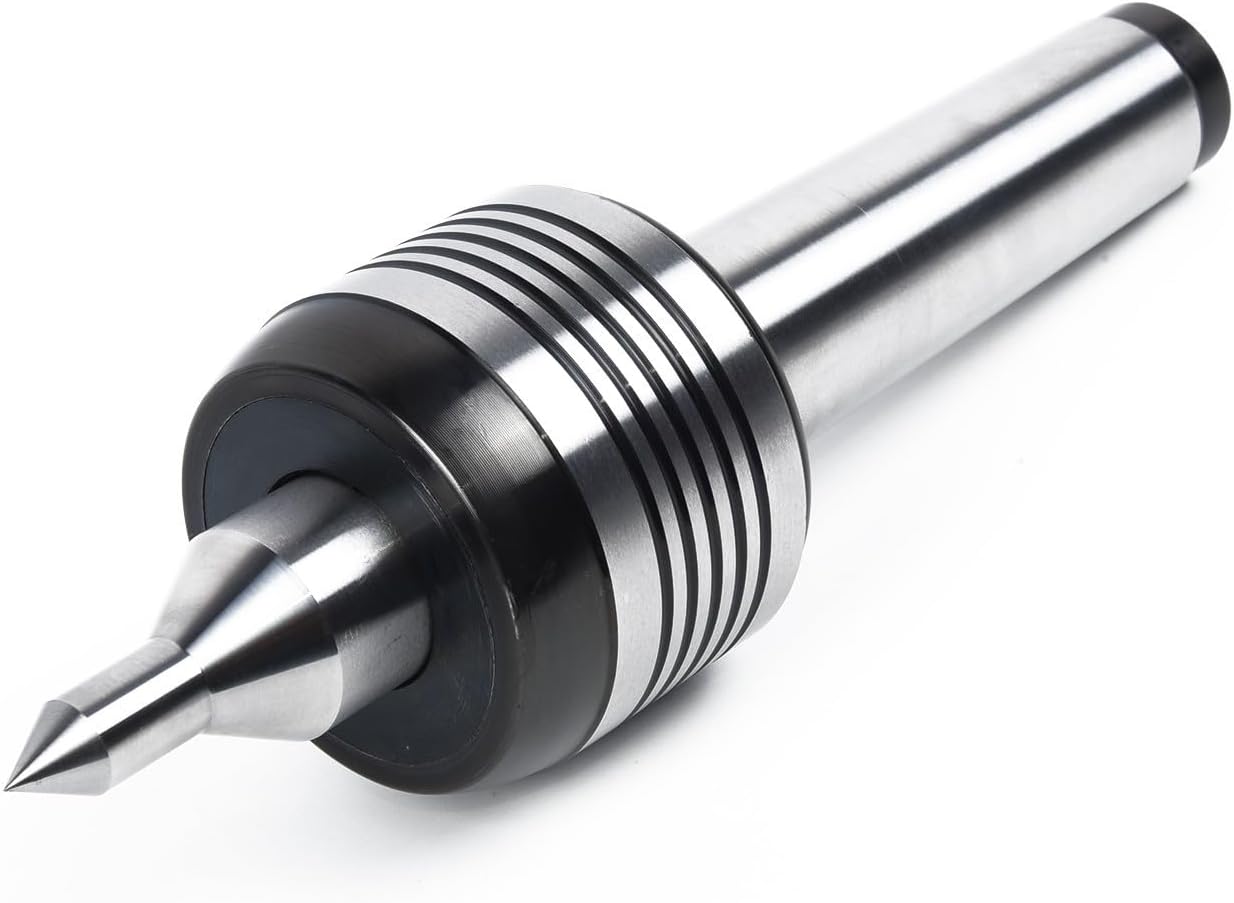

MT4 4MT Live Center for Taper #4, for CNC Lathe Revolving Center with 60 Degree Point, Alloy Steel Bearing, Extended Spindle, 2500 RPM, 700

Product description Features:*MT4 4MT for Live Center Centre for Taper Bearing Lathe Turning Revolving* and *Made of steel, and practical to use*Designed for high speed lathes and For CNC lathes for high for .*Three ball bearing design with extended long spindle and For CNC points to enhance wheel clearance.*The shaft is made of alloy steel and heat treated to Rc 60-62 for high rigidity and durability.*Dustproof and waterproof seal, long service life.Specifications:*Color: Silver(As pictures show)*Size: 220x58mm / 8.66&; x 2.28&;(Approx. )*Material: Steel*Shank size: for taper #4.*Maximum speed: 2,500.*Accuracy: 0.000197&;*Load capacity: 700 pounds.*Center point: 60 degrees.*Point diameter: 1.10&;(Approx. )*Point length: 1.91&;(Approx. )Package Contents:1*4MT 0.000197&; For CNC for Long Lathe Live Moles Taper No. 4Note:1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your and light brightness.2.Please allow slight manual measurement deviation for the data. Manufacturer Contact Information PETiB

• For MT4 Live Center for High-Speed For CNC Lathes: This MT4 (For Taper #4) live center features three ball bearings with an extended spindle design, specifically engineered for high-speed and For CNC lathe operations up to 2,500 RPM, delivering smooth rotation and reduced vibration for superior turning accuracy on workpieces up to 700 pounds.
• Heat-Treated Alloy Steel Construction for Lasting Performance: The shaft is crafted from premium alloy steel and heat-treated to Rc 60-62 hardness, providing exceptional rigidity and wear resistance; the 60-degree center point (1.10" diameter, 1.91" length) maintains its sharpness through thousands of rotations, guaranteeing consistent results in demanding machining environments.
• 0.000197" Runout Accuracy for Professional Finishing: Achieving For with only 0.000197" runout tolerance, this live center insures tight tolerances and mirror-like For finishes on turned components; the For CNC-ground point and robust bearing assembly eliminate deflection, making it suitable for both roughing and finish operations in metalworking shops.
• Extended Spindle Design with Enhanced Tool Clearance: The 220mm (8.66") overall length and long-spindle configuration provide superior wheel clearance, allowing easier access for grinding and turning operations; the secure For taper #4 shank ensures wobble- mounting in compatible tailstocks, while the sealed bearing system protects against contaminants for extended service life.
• Versatile Load Capacity for Heavy-Duty Machining: Supporting workpieces up to 700 pounds, this live center handles substantial turning projects with confidence; the triple ball bearing mechanism distributes loads evenly while the hardened steel body resists deformation under pressure, making it an essential tool for machinists working with large-diameter stock, lengthy shafts, or dense materials in production and job shop settings.
