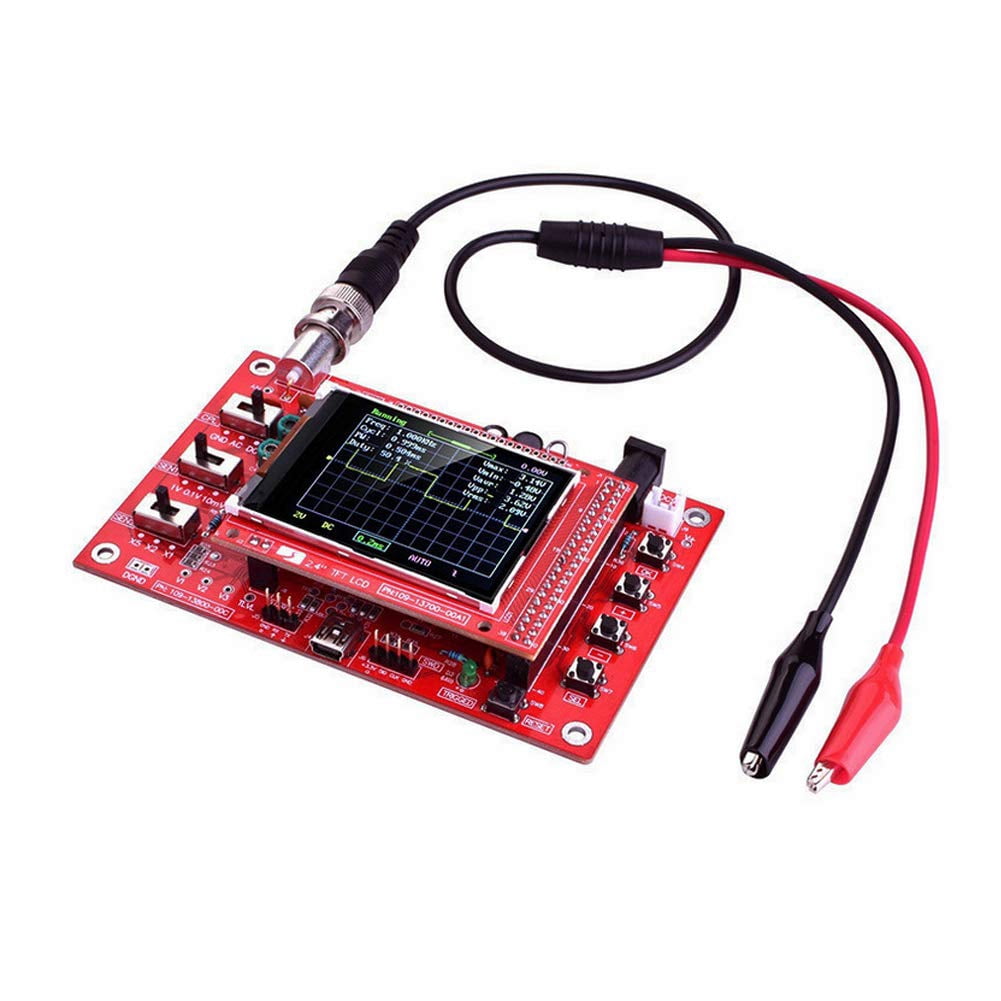

Treedix DSO138 Oscilloscope DIY Kit Handheld Digital Oscilloscope 1msps Real-Time Sampling Rate 2.4 inch TFT Display

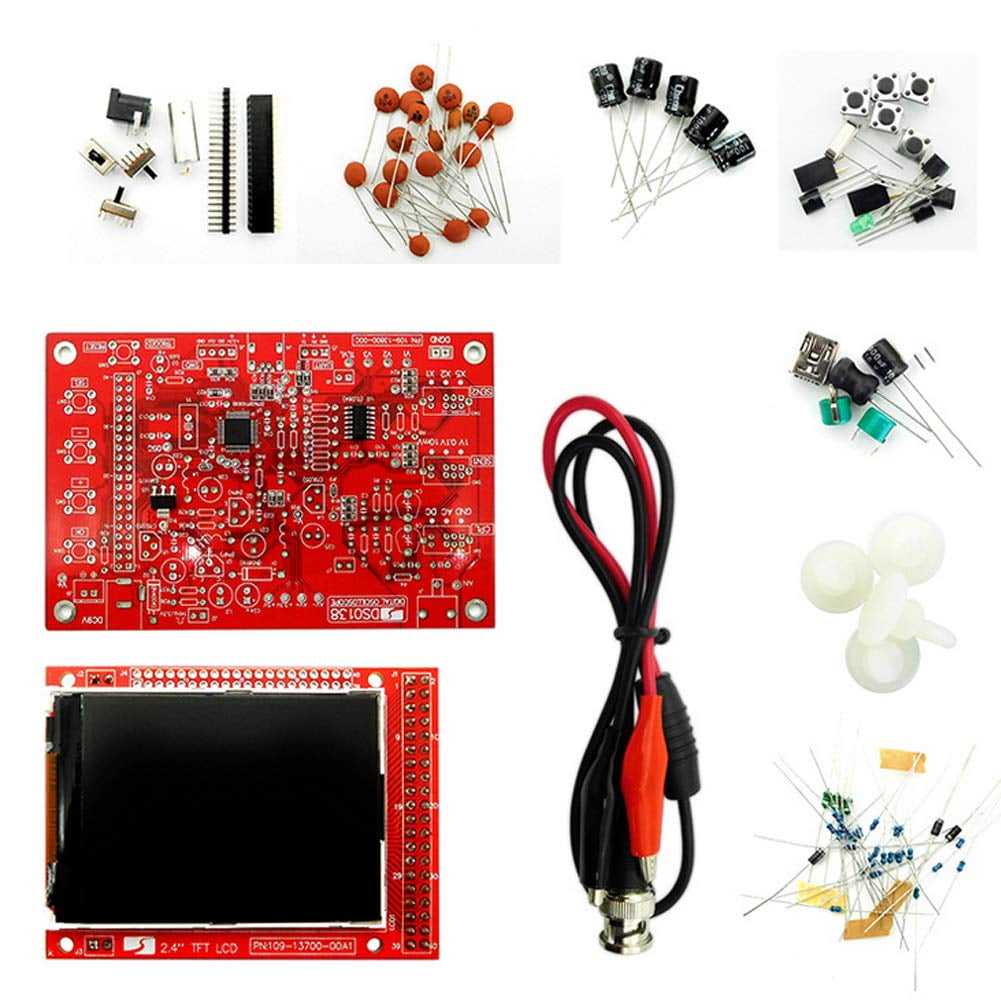

<p>Product Description<br>Specification：<br>Maximum real-time sampling rate: 1Msps <br>Accuracy: 12 Bit <br>Sampling buffer depth: 1024 bytes <br>Analog band width: 0-200KHz <br>Vertical sensitivity: 10mV / Div – 5V / Div (Progress according to 1-2-5) <br>Input impedance: 1MΩ <br>Maximum input voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe) <br>Horizontal time base range: 10μs / Div – 50s / Div (Progress according to 1-2-5) </p> <p>Features:<br>1. Coupling methods include DC / AC / GND <br>2. The vertical displacement can be adjusted with instructions <br>3. With automatic, conventional and single trigger mode, it is convenient to capture instant waveform <br>4. Trigger on rising or falling edges <br>5. Trigger level position can be adjusted with indication <br>6. Observable waveform before trigger (negative delay) <br>7. Waveform display can be frozen at any time (HOLD function) <br>8. Comes with 1KHz /3.3V square wave test signal source </p> <p>Package included: <br>1 x Oscilloscope DIY Kit <br>1 x Instruction <br>Note: This DSO138 Oscilloscope DIY Kit need to be assembled and soldered by yourself. </p>

• The kit uses ARM Cortex-M3 processor (STM32F103C8) and contains a 2.4-inch color TFT display, which can be used as an ARM development test board. High-definition display
• Let you effectively observe and measure signal waveforms in many occasions such as audio, video synchronization, low-frequency switching power supply, infrared receiving and transmitting.
• DSO138 oscilloscope is partially open-sourced. Can make a tailor-made software development on the basis of this kit, which can be can be changed to millivoltmeter, data recorder, etc.
• The variety of components is suitable for students to understand the oscilloscope structure and principles, and do in-line component welding, and chip component welding training.It's easy to assembly
• The oscilloscope kit is specially designed for professional teaching and training in electronics. Please note that this kit need to be assembled and soldered by yourself.
